We are Taiwan's first Quartz substrate manufacturer.
Materials are in the United States imported GE214.
Early and making joint development coupler of
ITRI. We won the trust of domestic and international
optical communications components maker. Our
products to the cities and counties in Taiwan, the
United States, Guangdong, Shanghai, Jiangsu,
Shenzhen.

    Technically based on the U.S. (IEEE, USA)
specification production. We accept the client in
the development of several new products.
Continued pursuit of excellence and
sophistication are our attitude.

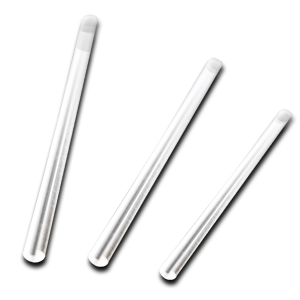

Standard Details

Specification (mm)
No.
Item
Value
A
Angle
0°/ 26°
B
Height
1.0
C
Diameter
2.0 / 1.7
D
Depth
0.9 - 0.6
E
Width
0.6
L
Length
30 / 32 / 35 / 38 / 40 / 42 / 45 / 46 / 48 / 55
Specification subject to change without notice.
Ensure that U.S. imports GE214 quartz.
Mechanical grinding forming grooves. And by 1215 ° anneal to eliminate stress.
All U.S. manufacturers require tolerance conus ordered.
All specifications can be customized tailor-made services.
