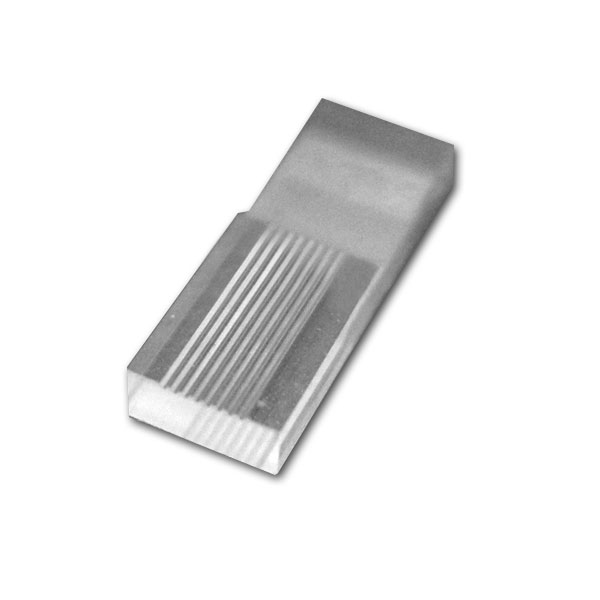

Widely used Fiber Array, and PLC(Planar Lightwave
Circuit), such as those based AWG for DWDM. Also commonly used in High Power Laser Diode Array's
connection and the formation of fiber-optic bundle
output.

    We are professional V-groove factory, pay attention
to quality and stability. Provide customers with
professional customized services. Materials is use of
U.S. imports of GE Quartz, Schott Tempax Germany,
and the purity and quality assurance. We passed the
RoHS Testing Center Taiwan testing toxic substances
(ETC). High channel specifications have through the
Taiwan Industrial Technology Research Institute Nanotechnology Center test ultra-precision
measurement accuracy.

    For process control and precision of the requirements
is the focus we have been asked.






Standard Details
Dwg number
channel
Pitch
L
W
B
T
D
material
QVG8-1-12-25-1
8ch
0.127
12
2.5
5
1.5
0.889
Quartz
TVG8-1-12-25-2
8ch
0.127
12
2.5
5
1.5
0.889
Tempax
QVG8-2-10-35-1
8ch
0.25
10
3.5
5
1.5
1.75
Quartz
TVG8-2-10-35-2
8ch
0.25
10
3.5
5
1.5
1.75
Tempax
